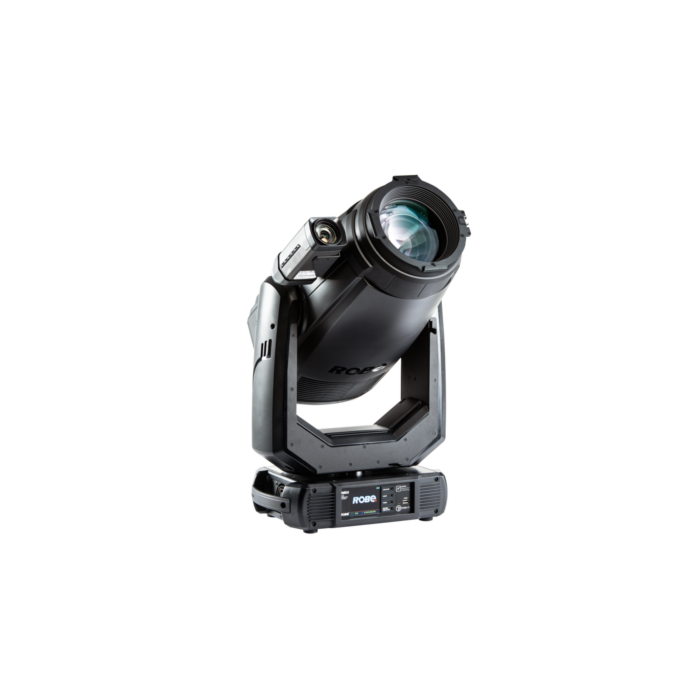

Robe T1 Profile FS Follow Spot

Varenummer: 5710018441
Leverandørens varenr.: 10018441

Robe T1 er designet specifikt til at opfylde de udfordrende krav, der stilles i tre meget forskellige områder: teater, tv og tourné. Profile FS giver nu mulighed for at blive forbundet til Robes innovative RoboSpot system.


T1 Profile FollowSpot er udstyret med digitalkamera på hovedet og kan tilsluttes RoboSpot BaseStation til off-stage follow-spot operation.
Den nye revolutionerende MSL™ (Multi-Spectral Light) LED-lyskilde er imponerende kraftig og når et output på 10.075 lumen.


Med CMY farvekontrol, DataSwatch™ -filtre, der indeholder et udvalg af forudprogrammerede farver via den nye generation RCC ™ (Robe Color Calibration) algoritme og en bred vifte på 2700K til 8000K CCT-kontrol, er alle farvevarianter mulige til selv de mest krævende designere.


De præcise behov for teaterdæmpning er taget højde for med Robes 18-bit dæmpningssystem. Den har en imponerende høj CRI på 90+, hvilket sikrer flotte naturlige farver.


Med T1 Wash tilbyder også at man nemt via DMX kan styre refreshrate på LED kilden og derved kan sørge for at lyset er flicker free uanset, hvilken kameratype man optager med. Dette gør lampen helt ideel til studiebrug og TV shows.

Se tekniske detaljer Se tekniske detaljer

Begrænsede fragtmuligheder pga. dimensioner eller vægt. Se forsendelsesmuligheder ved bestilling eller kontakt os.

Ukendt levering - kontakt os



Beskrivelse

Detaljer

  • SOURCE
  • Light source type: MSL™ 550 W Multi-Spectral LED engine
  • LED life expectancy: min. 30.000 hours
  • CRI > 90
  • Control: Automatic and remote on/off
  • Light source warranty: 3 years or 20.000 hours
  • OPTICAL SYSTEM
  • Robe’s proprietary optical design
  • High - efficiency zoom optical system, ratio 7:1
  • Zoom range: 7° - 49°, covers favoured field angles of most Theatre and TV lights
  • Fixture total lumen output: up to 10.075 lm
  • DYNAMIC EFFECTS
  • Factory calibrated whites and colours via the new RCC™ (Robe Colour Calibration) system, automatic or on-call self-re-calibration of the LED engine without the use of any external tool (Patent pending)
  • Colour mixing: additive with CMY control mode
  • Variable CTO: 2.700K - 8.000K
  • DataSwatch™ filters: pre-programmed 237 colours and tones including most used whites 2.700K, 3.200K, 4.200K, 5.600K and 8.000K
  • Tungsten lamp effect: 750W, 1.000W, 1.200W, 2.000W, 2.500W lamp emulation
  • + - Green correction function
  • Adjustable CRI from 80 to 90+
  • Framing shutters : Patented framing shutters module with 4 individually positionable blades plus rotation of the complete frame system + - 60°
  • Rotating gobo wheel: 7 rotating, indexable and replaceable breakup and aerial gobos + open, all gobos specially selected for theatrical and TV productions
  • Animation wheel: Aluminium animation wheel, used alone or in combination with gobos, rotating in both directions at variable speed
  • Prism: 6 - facet 8° prism rotating in both directions at variable speed
  • Iris: Motorized, stepless, pulse effects up to 3 Hz
  • Frost: very light 0,5° for instant softening of the projected gobo or framing shutters and medium 10° for even wash, both selected specifically for theatre and TV use
  • Motorized zoom and focus
  • Electronic strobe effect with variable speed up to 20 Hz
  • Pre-programmed random strobe & pulse effects
  • L3™ - (Low Light Linearity) Imperceptible 18 bit dimming for ultra smooth fade to black
  • Extremely quiet operation suitable for all types of production in Theatre and TV
  • Cpulse™ special flicker free management for HD and UHD cameras
  • Low maintenance requirements due to the sealed effect part of the head, no smoke or dust can get inside and adhere to the optical elements such as gobos and lenses
  • EMS™ - Electronic Motion Stabiliser technology for Pan and Tilt movements, reducing vibrations from audio outputs, truss movement, sprung or suspended floors
  • CONTROL AND PROGRAMMING
  • Setting & Addressing: ROBE Navigation System 2 (RNS2)
  • Display: QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning, operation memory service log with RTC, stand-alone operation with 3 editable programs (each up to 100 steps), built-in analyser for easy fault finding
  • Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2, sACN
  • Web server
  • Wireless CRMX™ technology from Lumen Radio: On request
  • DMX Protocol modes: 3
  • Control channels: 49, 33, 53
  • Pan/Tilt resolution: 16 bit
  • Colour mixing: 8 or 16 bit (internal 18 bit)
  • Variable CTO: 8 bit
  • Adjustable CRI: 8 bit
  • + - Green correction: 8 bit
  • Framing shutters module movement & rotation: 8 bit
  • Rotating gobo wheel positioning: 8 bit
  • Gobo indexing & rotation: 8 or 16 bit
  • Animation wheel: 8 bit
  • Prism indexing & rotation: 8 bit
  • Iris: 8 or 16 bit
  • Frost: 8 bit
  • Zoom: 8 or 16 bit
  • Focus: 8 or 16 bit
  • Dimmer: 8 or 16 bit (internal 18 bit)
  • MOVEMENT
  • Pan movement: 540°
  • Tilt movement: 280°
  • Movement control: Standard and Speed
  • Automatic Pan/Tilt position correction
  • EMS™: Electronic Motion Stabilizer system for Pan & Tilt reducing beam deviation caused by truss movement or vibration (Patent pending)
  • ROTATING GOBOS
  • 7x rotating glass gobos
  • Image diameter: 23.5 mm
  • Outside diameter: 26.8 mm
  • Thickness: 1.1 mm
  • Max. thickness: 4 mm
  • High temperature borofloat or better glass
  • "SLOT&LOCK" system for easy replacement of gobos
  • EFFECT WHEEL
  • Single animation wheel
  • Material: Aluminium
  • Can be used alone or in combination with rotating gobos
  • Rotating in both directions, variable speed
  • FRAMING SHUTTERS SYSTEM
  • Blades: 4 Blades, each with separate movement and rotation control
  • Movement: smooth with variable speed
  • Smooth and very precise motion of framing shutters
  • Rotation: +- 60° of the complete framing system
  • THERMAL SPECIFICATION
  • Maximum ambient temperature: 45°C (113°F)
  • Maximum surface temperature: 90°C (194°F)
  • Minimum operating temperature: -5°C (23°F)
  • ELECTRICAL SPECIFICATION AND CONNECTIONS
  • Power supply: Electronic auto-ranging
  • Input voltage range: 100-240 V, 50/60 Hz
  • Power consumption: maximum 650 W at 230 V / 50 Hz (all LEDs On)
  • Power in connector: Neutrik powerCON TRUE1
  • DMX and RDM data in/out: Locking 3-pin & 5-pin XLR
  • Ethernet port in: RJ45
  • APPROVALS
  • CE Compliant
  • cETLus Compliant (pending)
  • MECHANICAL SPECIFICATION
  • Height: 726 mm (28.6") - head in horizontal position
  • Width: 400 mm (15.7")
  • Depth: 258 mm (10.2") - head in horizontal position
  • Weight: 24.3 kg (54 lbs)
  • RIGGING
  • Mounting positions: Horizontally or vertically
  • Universal operating position
  • Mounting points: 2 pairs of 1/4-turn locking points
  • 2x Omega adaptors with 1/4-turn quick locks
  • Safety cable attachment point
  • Pan and Tilt transport locks
  • INCLUDED ITEMS
  • User Manual
  • Gel frame adaptor
  • Omega Adaptor CL-regular 2 pcs
  • Power cord including powerCON TRUE1 In connector
  • RoboSpot Camera for T1 Profile FS™ version
